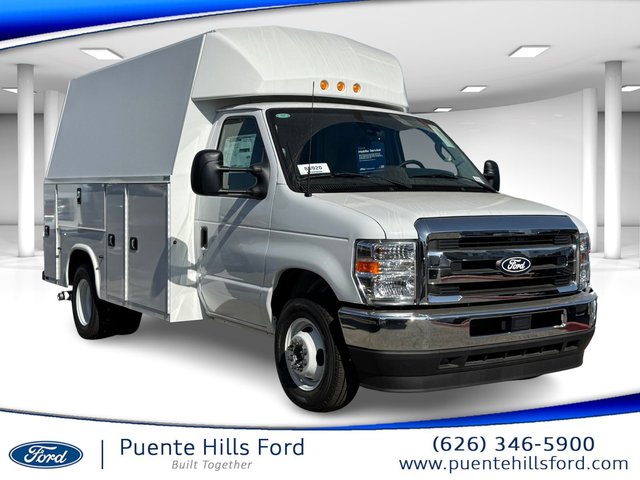

New 2026 Ford Econoline Cutaway E-350 SRW Base
- VIN: 1FDWE3FN0TDD18547
- Stock: 260000
New 2026 Ford Econoline Cutaway Base
VIN: 1FDWE3FN0TDD18547STOCK: 260000
Basic Info
-
Exterior:Oxford White
-
Drivetrain:4x2
-
Interior:Medium Flint
-
Transmission:6-Speed O/D w/Tow Haul transmission
-
Engine:7.3L V8 Premium-Rated Engine
Key Features
-
Keyless Entry
Description

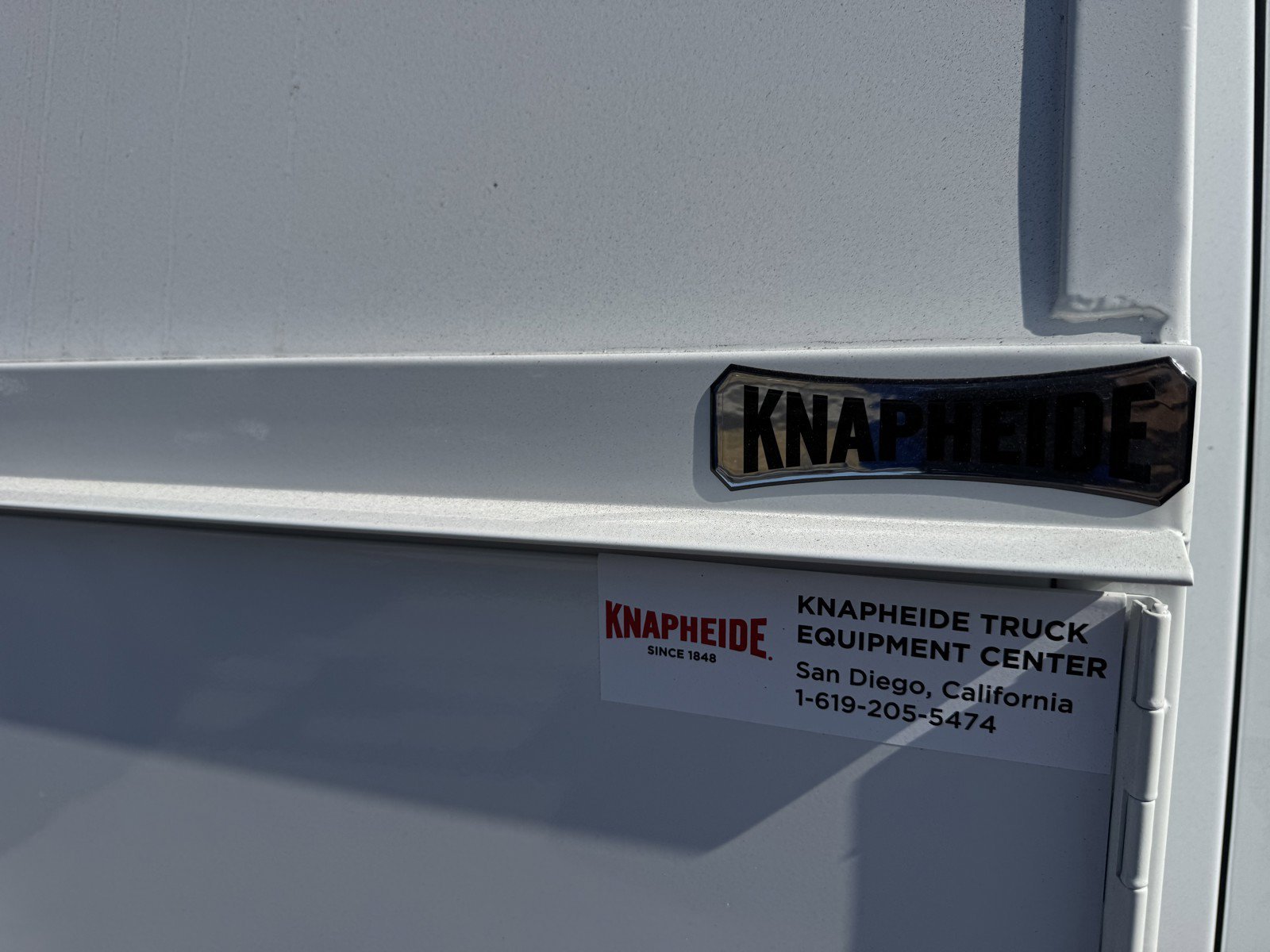

KHAPHEIDE UPFIT:

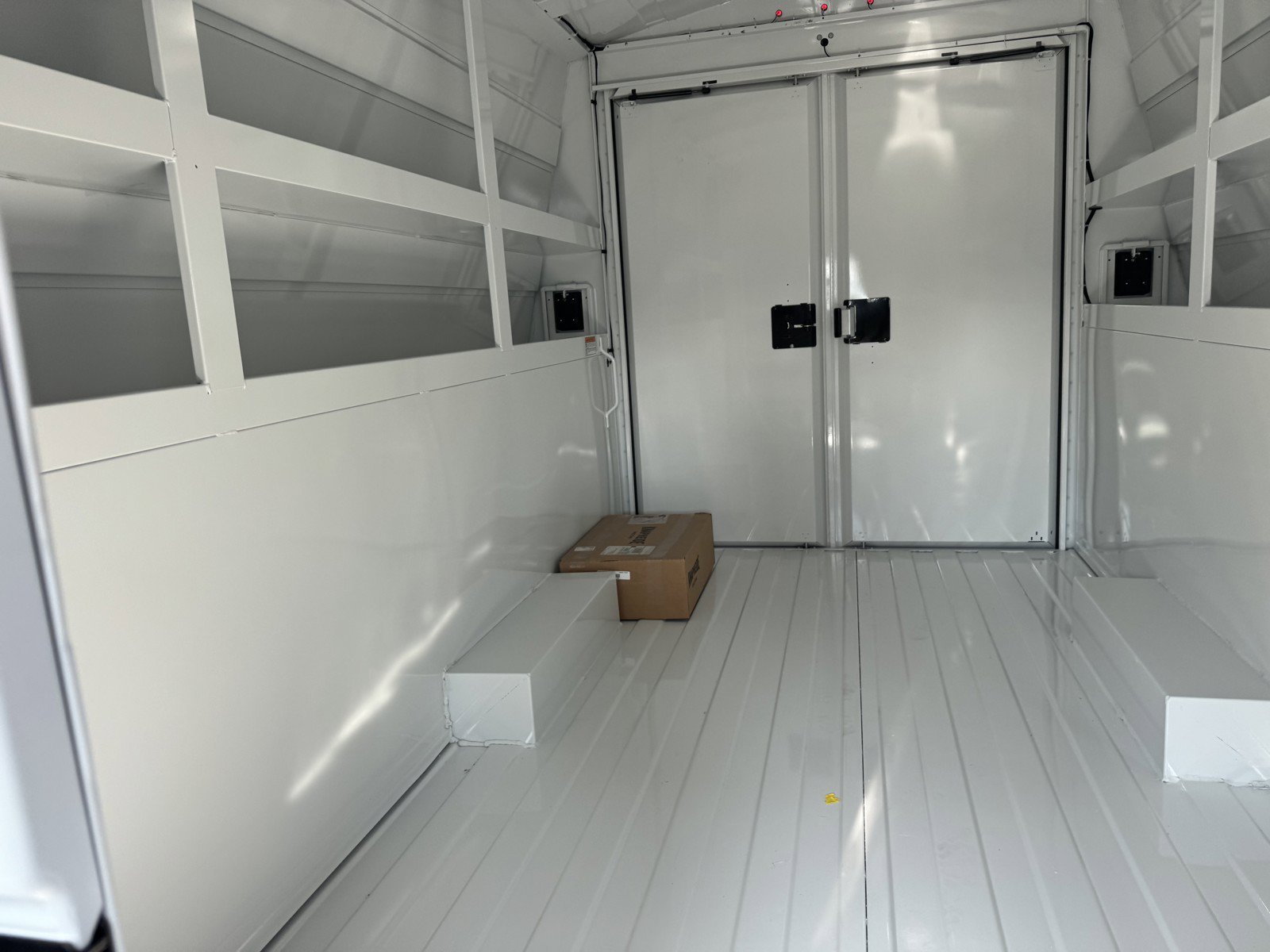

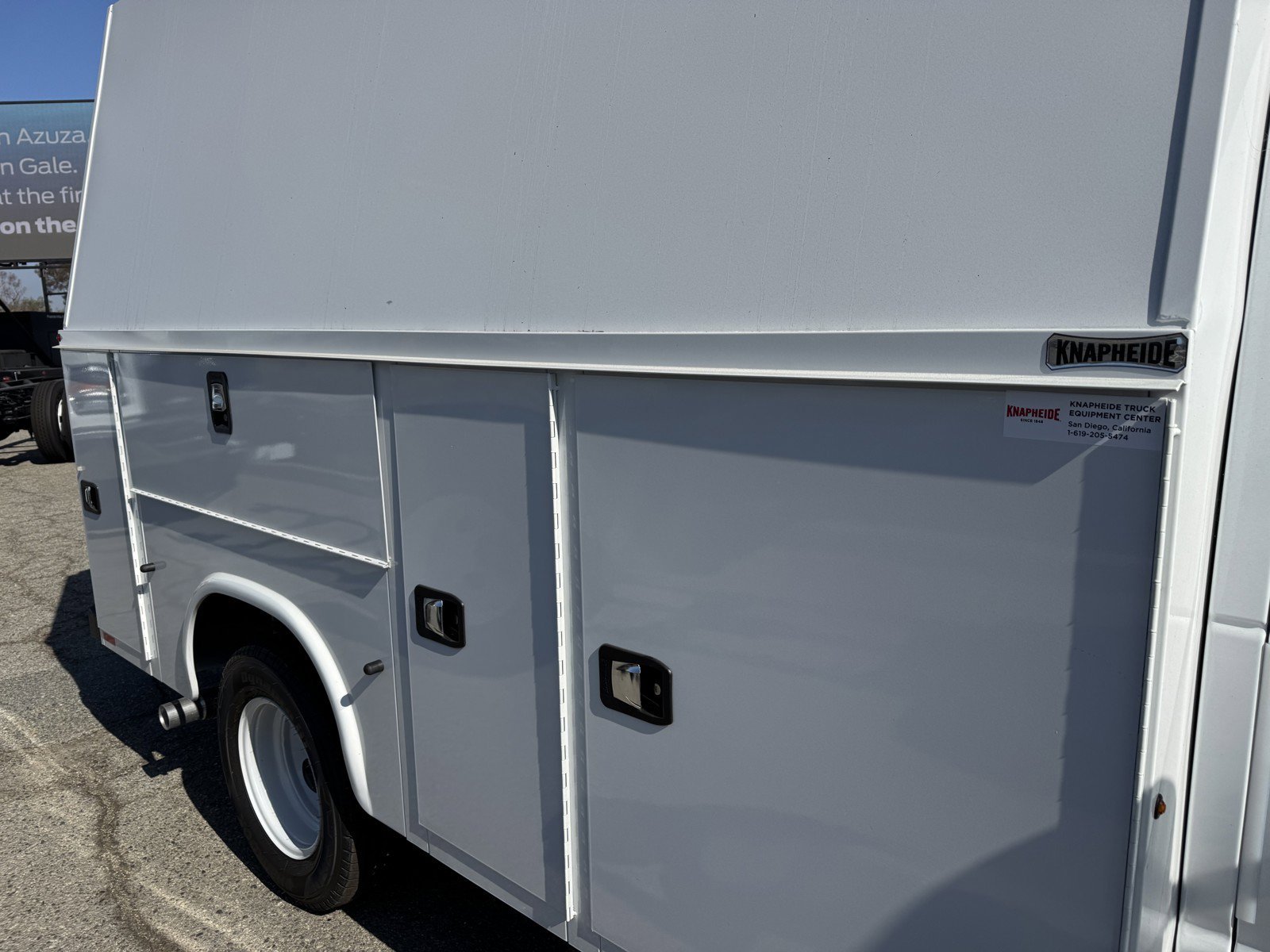

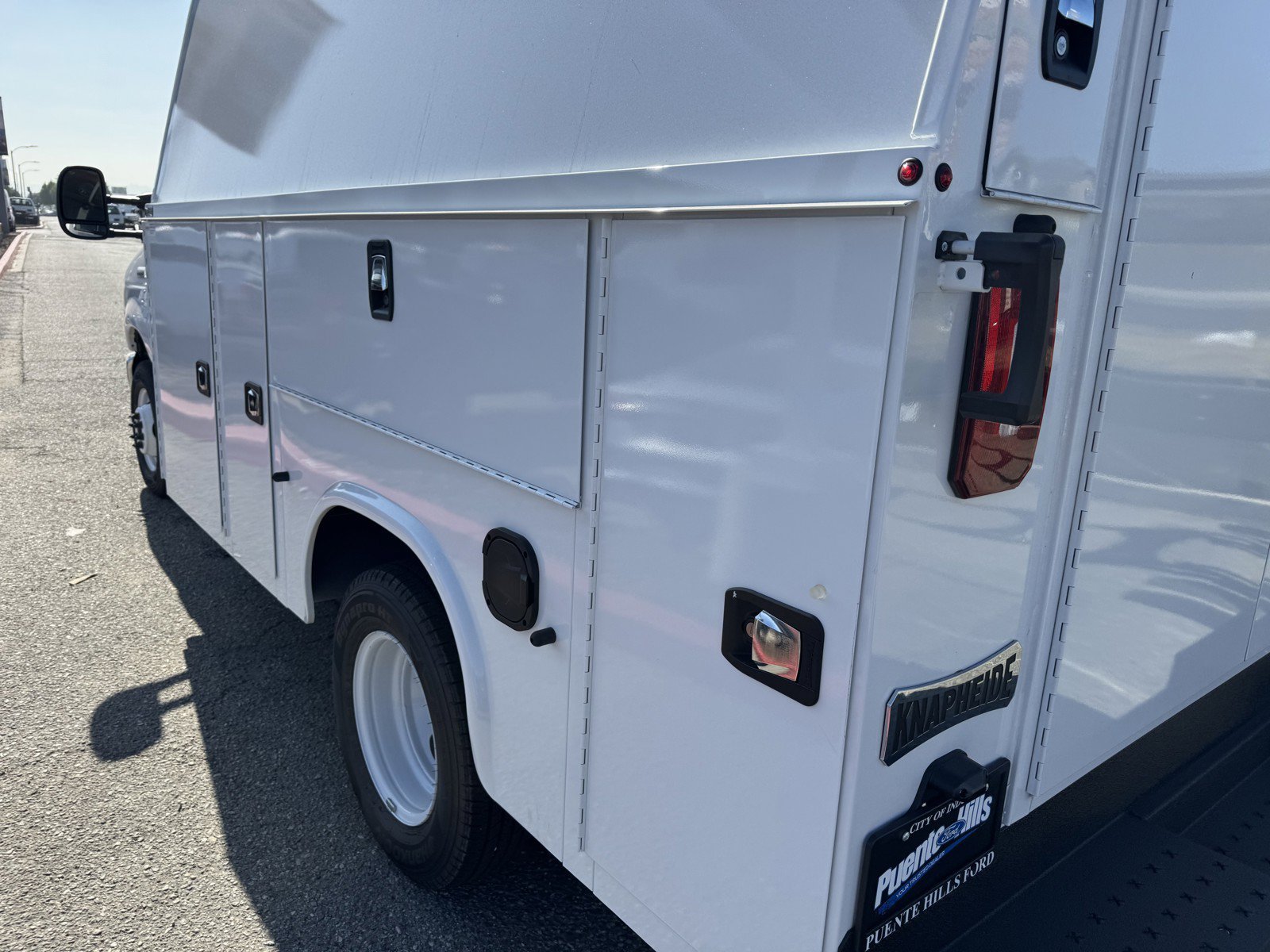

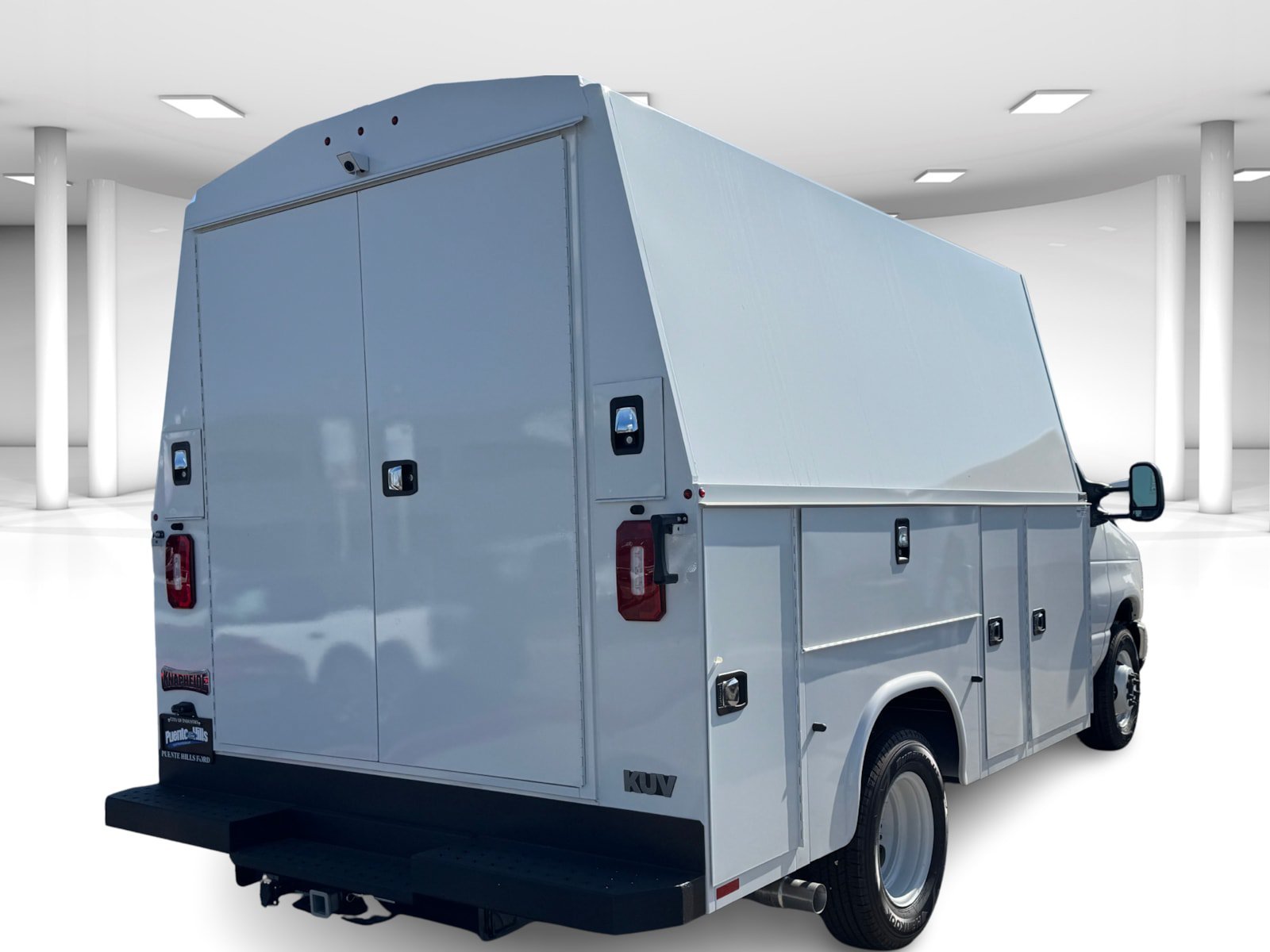

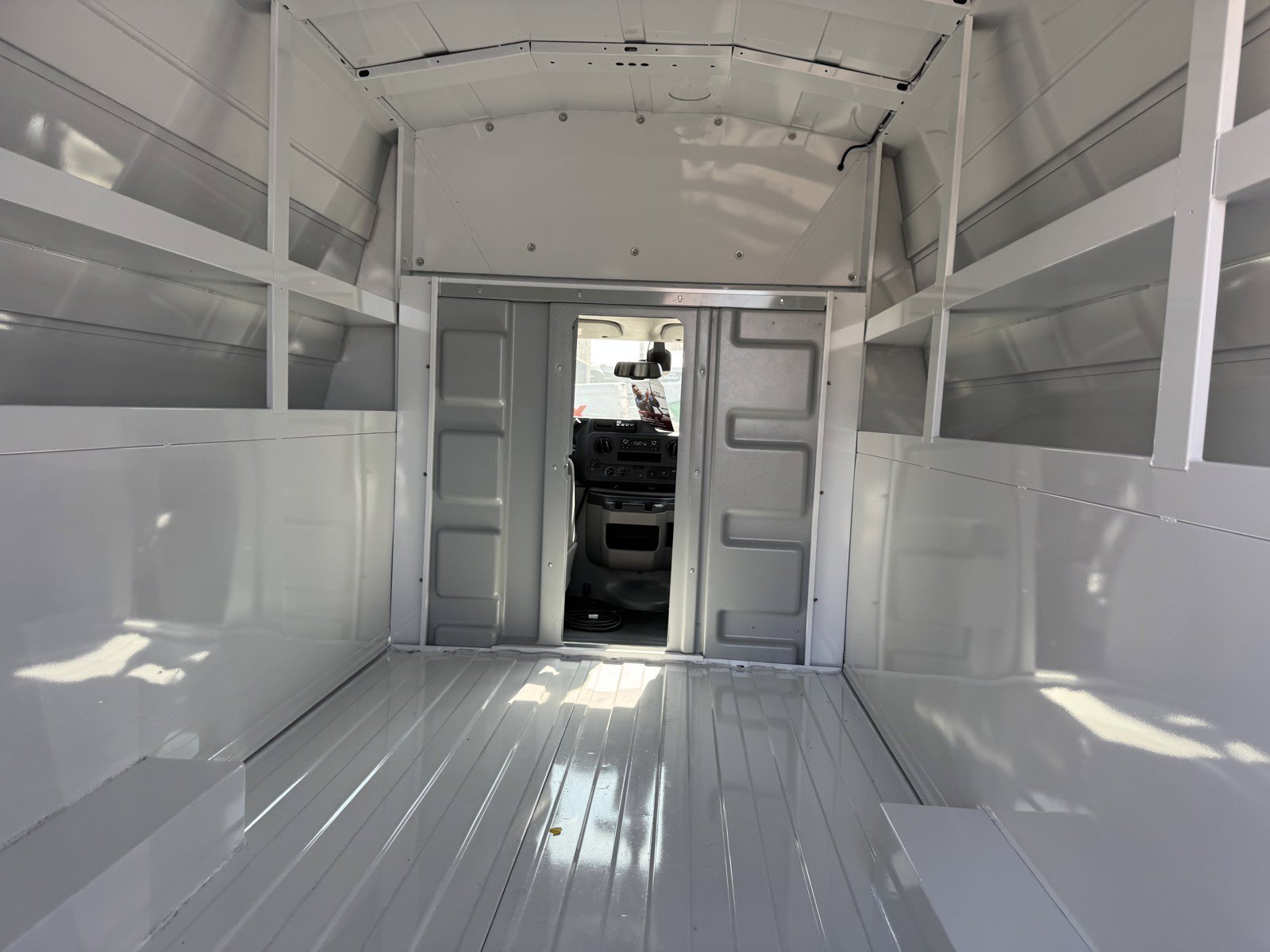

KUV129DH KUV Body with High Roof
Automotive Style Rivet-less Rotary Latches
Automotive Door Seals
Weight Reduced Galvanneal Corrigated Steel Floor

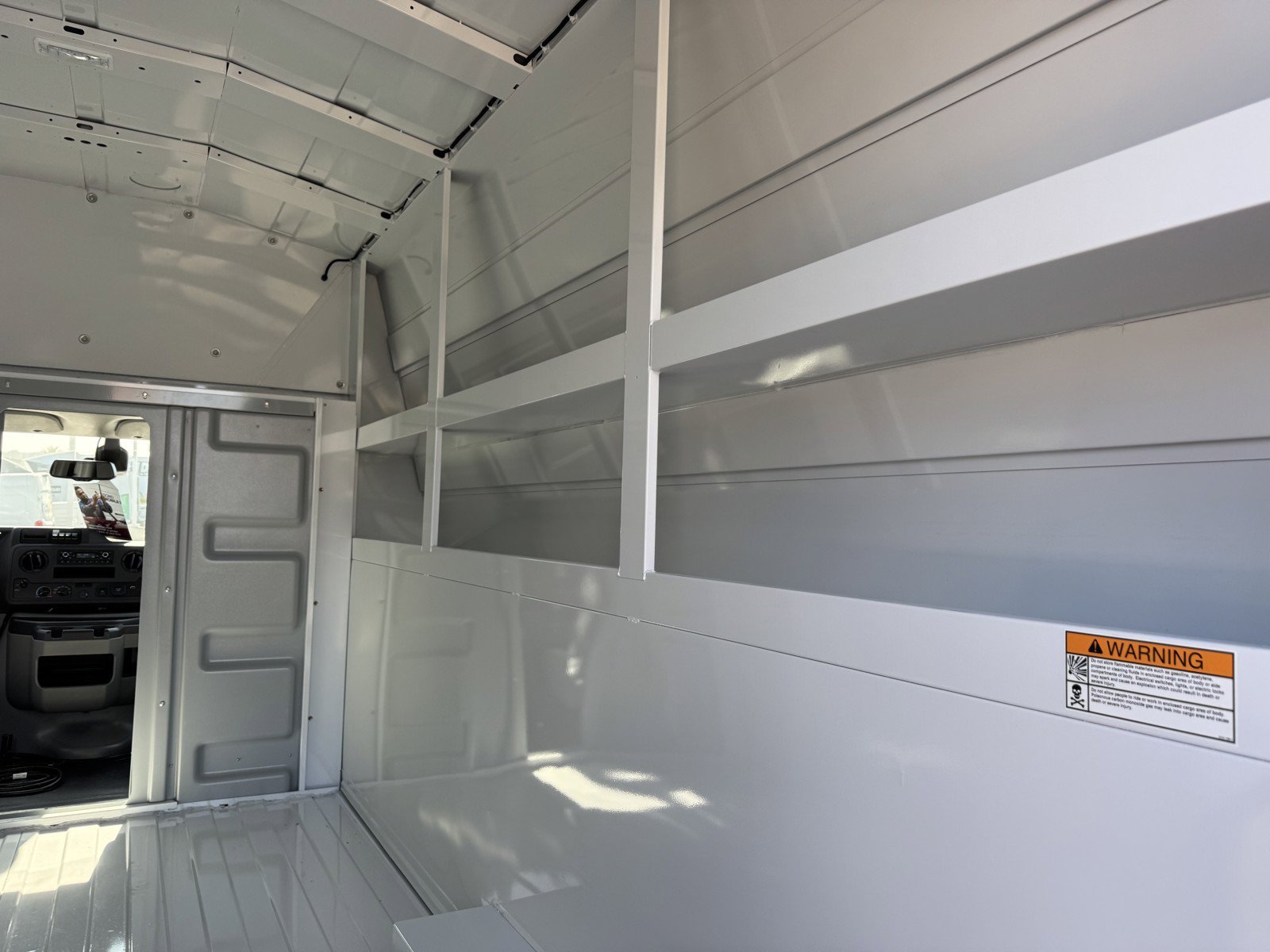

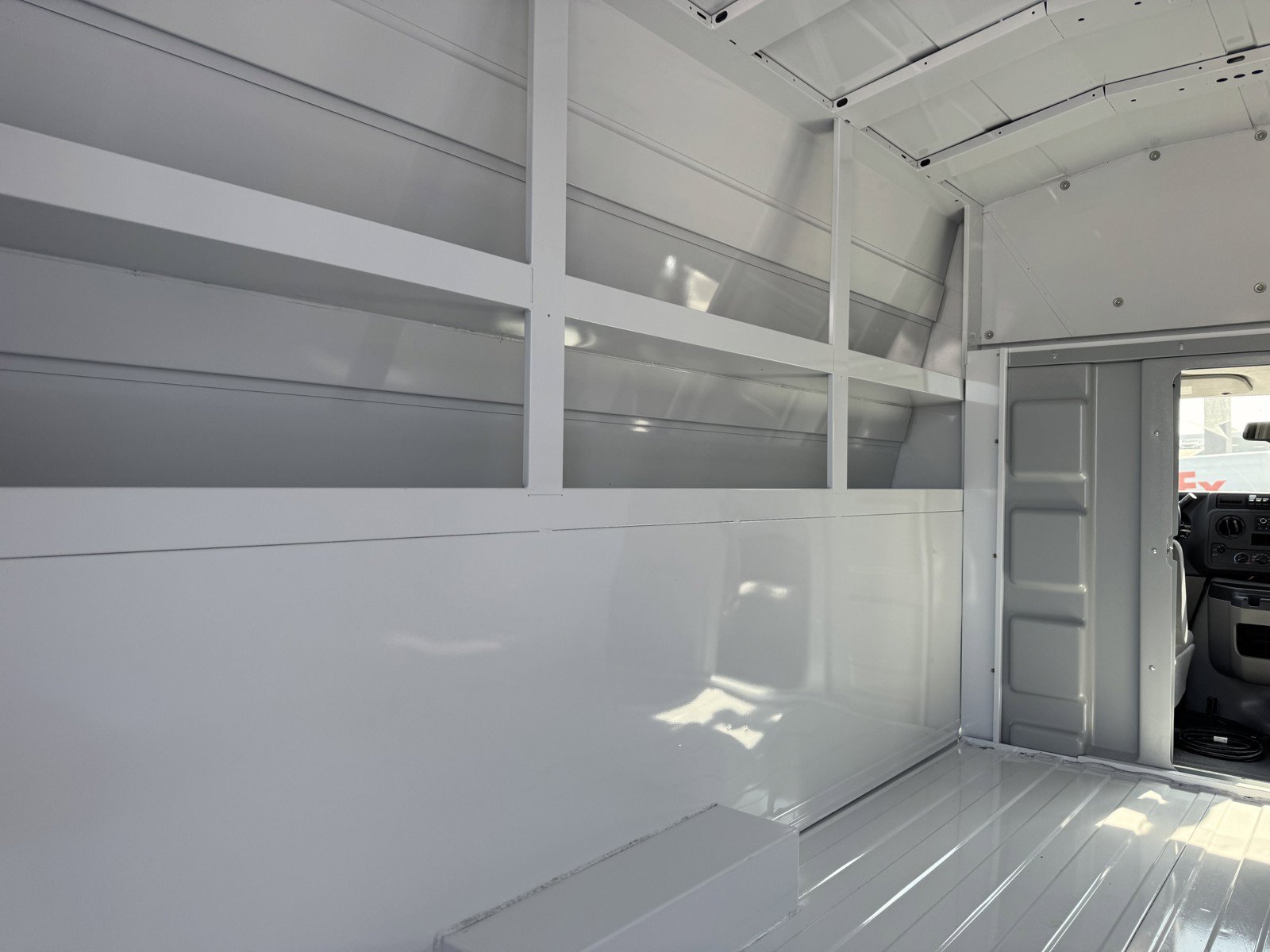

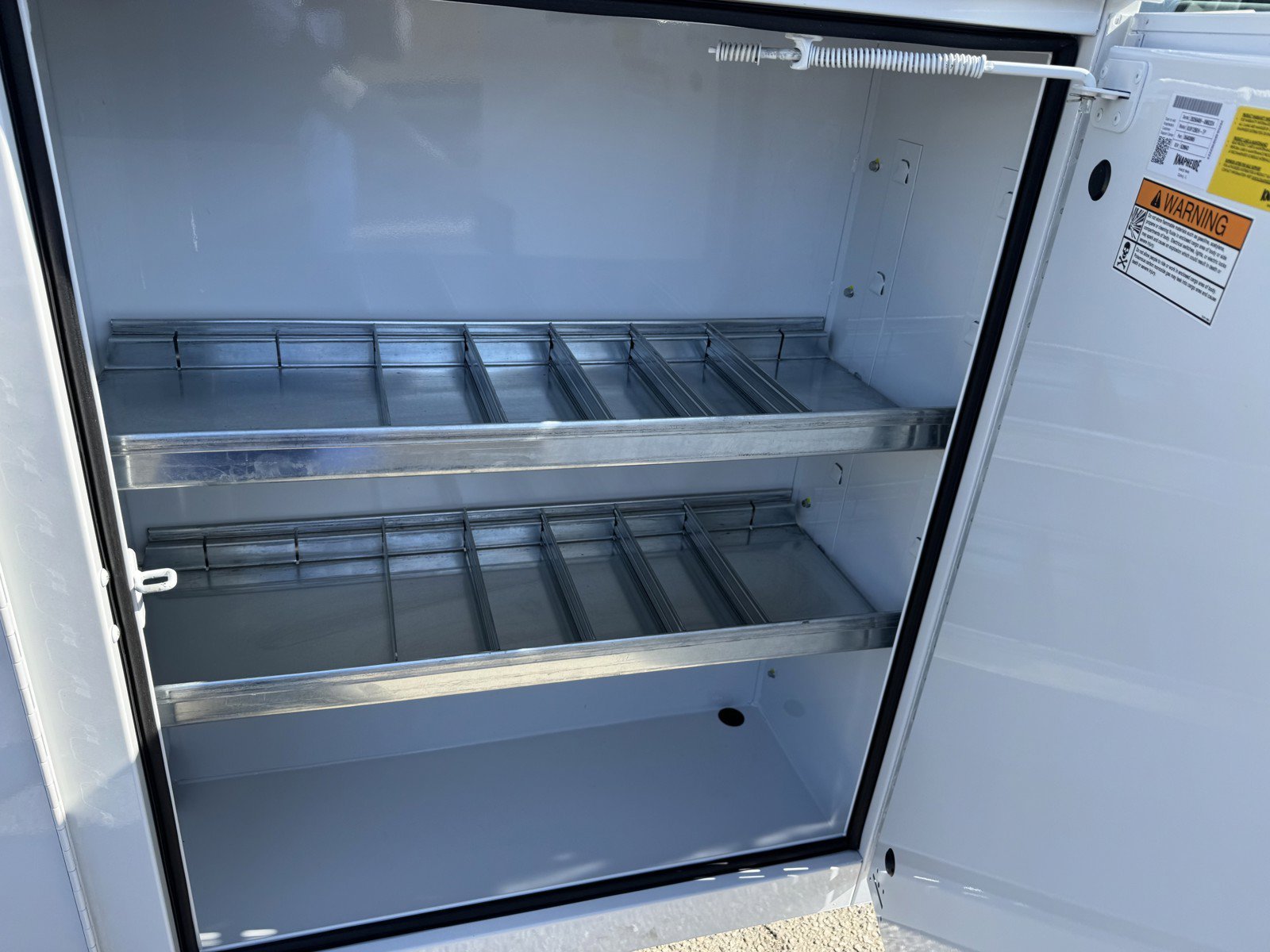

Standard Shelving Package

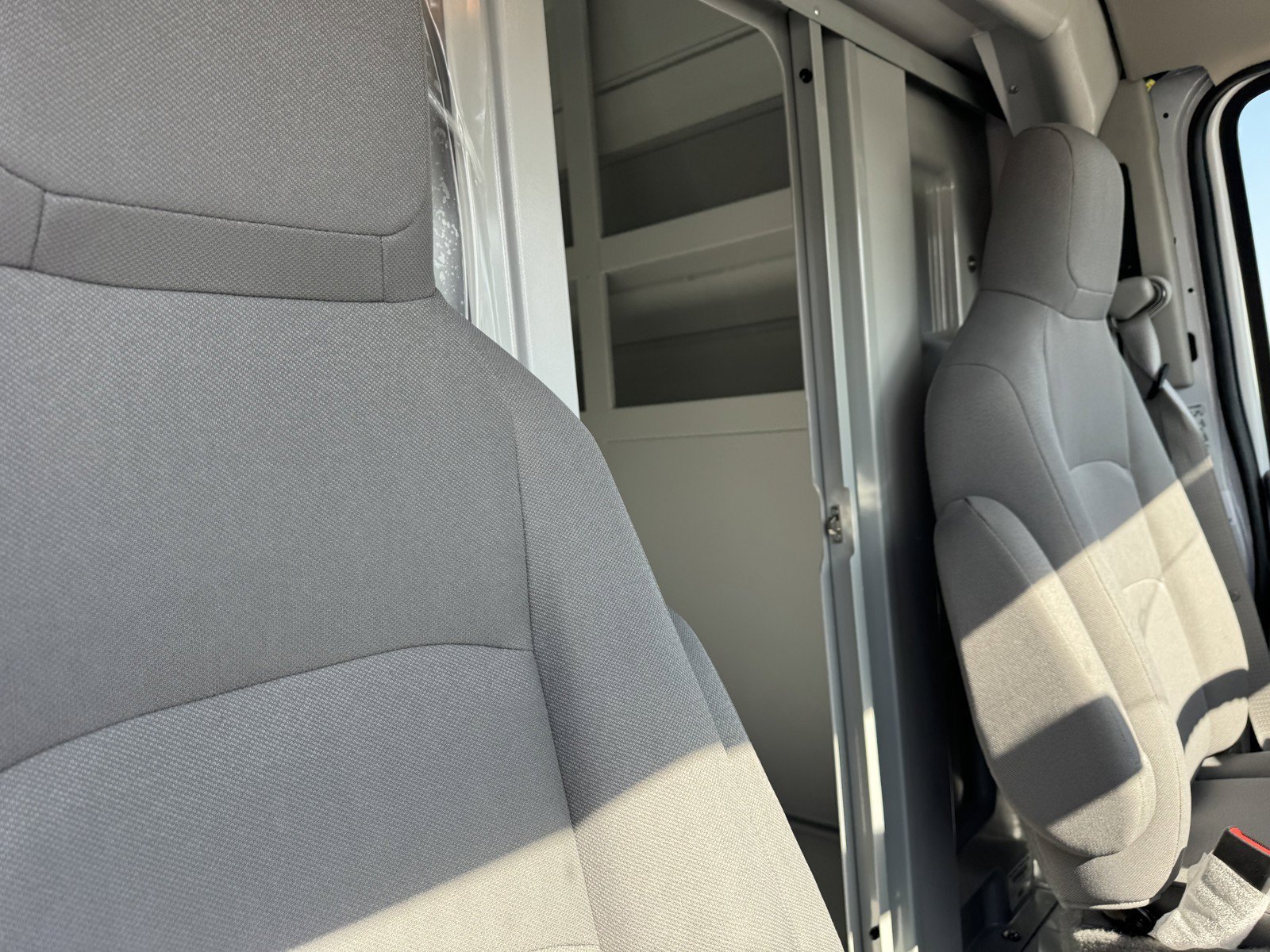

ABS Cab Partition with Sliding Door and Window
Rear Access Door, Both Rear End Panels
Underlap Rear Door Inside Release Handle
Galva-Grip Bumper with Step Well and Knapliner
Master Locking System
LED Surface Mount Lights with Rear Strobe Lights
Activated
Aluminum Fuel Fill
Solid Rear Doors
Grab Handle Located at Right Rear
Two Dome Lights Switched at Rear
Wind Deflector Included
Factory Supplied Backup Camera Installed if Ordered with
Chassis
K-Coat Corrosion Protection with Knapheide's Exclusive
12-Stage Electro-Coating Prime Paint System
Body Fully Undercoated
Finish Painted White (Single Stage Enamel) Exterior, Cargo
Area, and Compartment Interiors
7-Way Round Trailer Plug
Class V Hitch
Reducer Sleeve, Pass Thru
Mechanics Vise Bracket
12.25" x 7.63" Mounting Surface can be Adjusted in 1"
Increments from 2" to 8" Above the Top of the Bumper
3/16" Steel Construction
Prime Painted
Hardware Included
Pre-Punched to Accommodate a 3.5", 4", or 4.5" Wilton
Vise with Swivel Base
Codeable Padlock Price includes: $1000 - Retail Customer Cash. Exp. 01/04/2027
Vehicle Details
Exterior
- Black Front Bumper w/Black Rub Strip/Fascia Accent
- Black Side Windows Trim and Black Front Windshield Trim
- Black Door Handles
- Light Tinted Glass
- Variable Intermittent Wipers
- Front Windshield -inc: Sun Visor Strip
- Fully Galvanized Steel Panels
- Black Grille

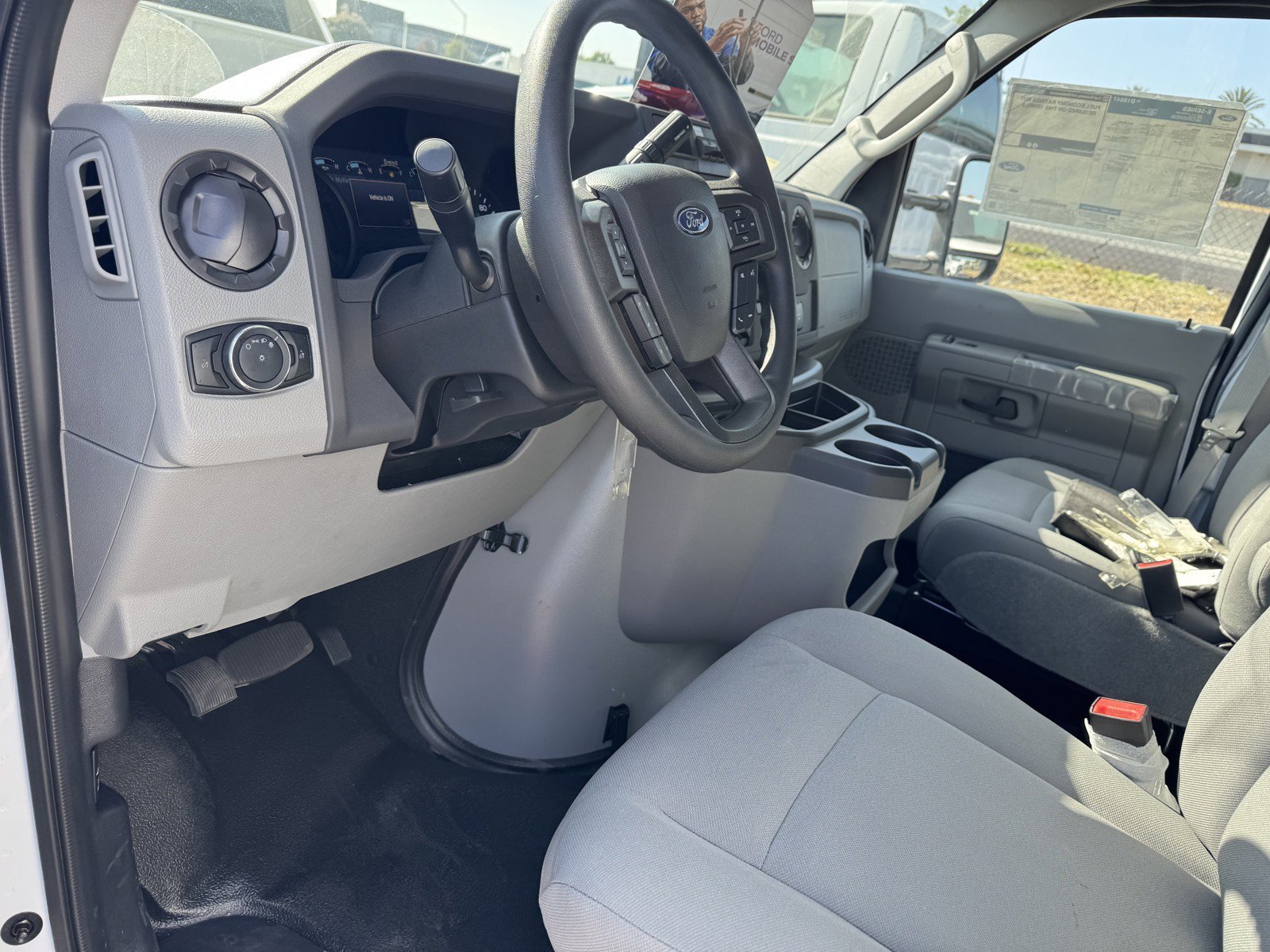

Interior

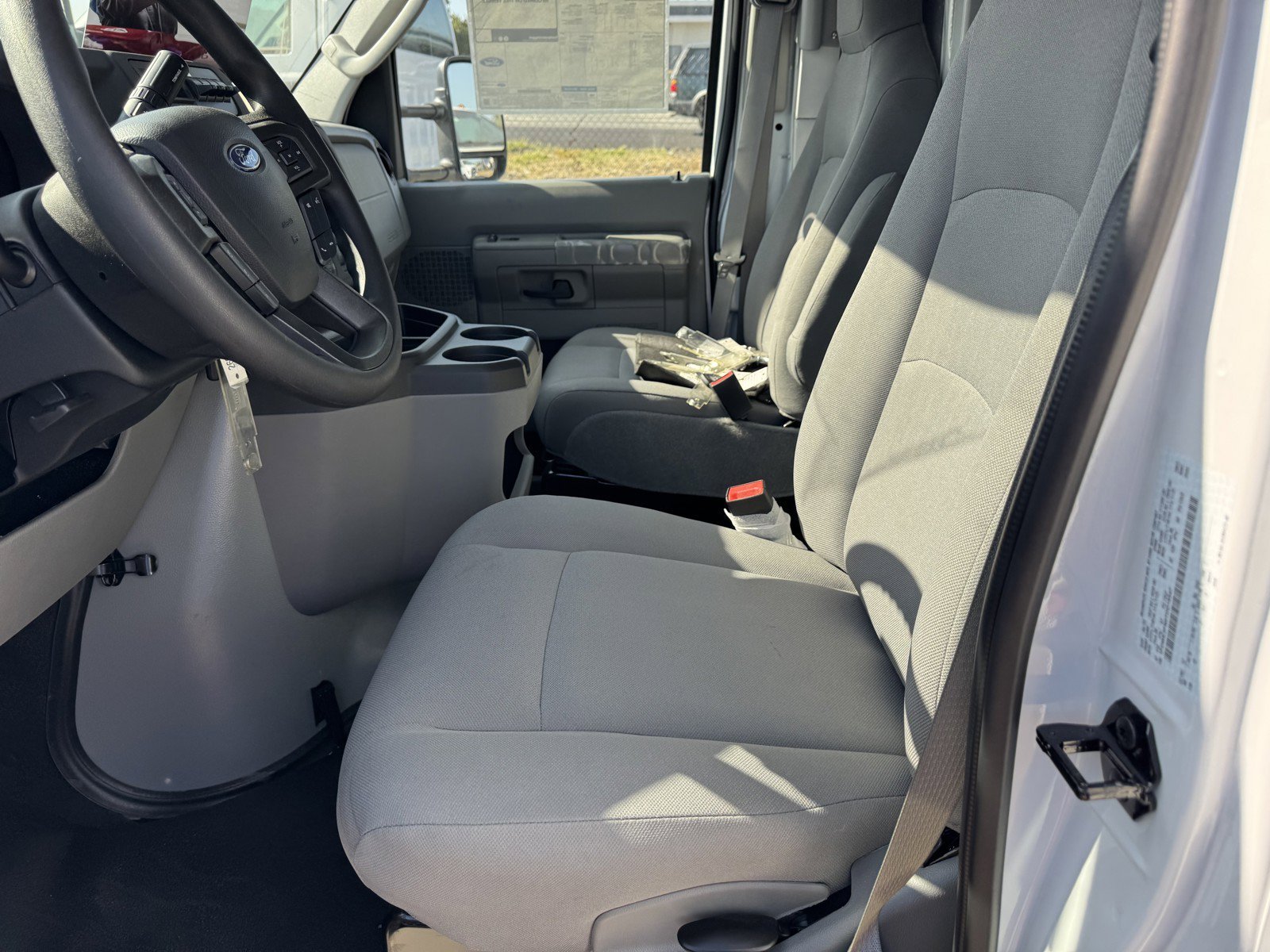

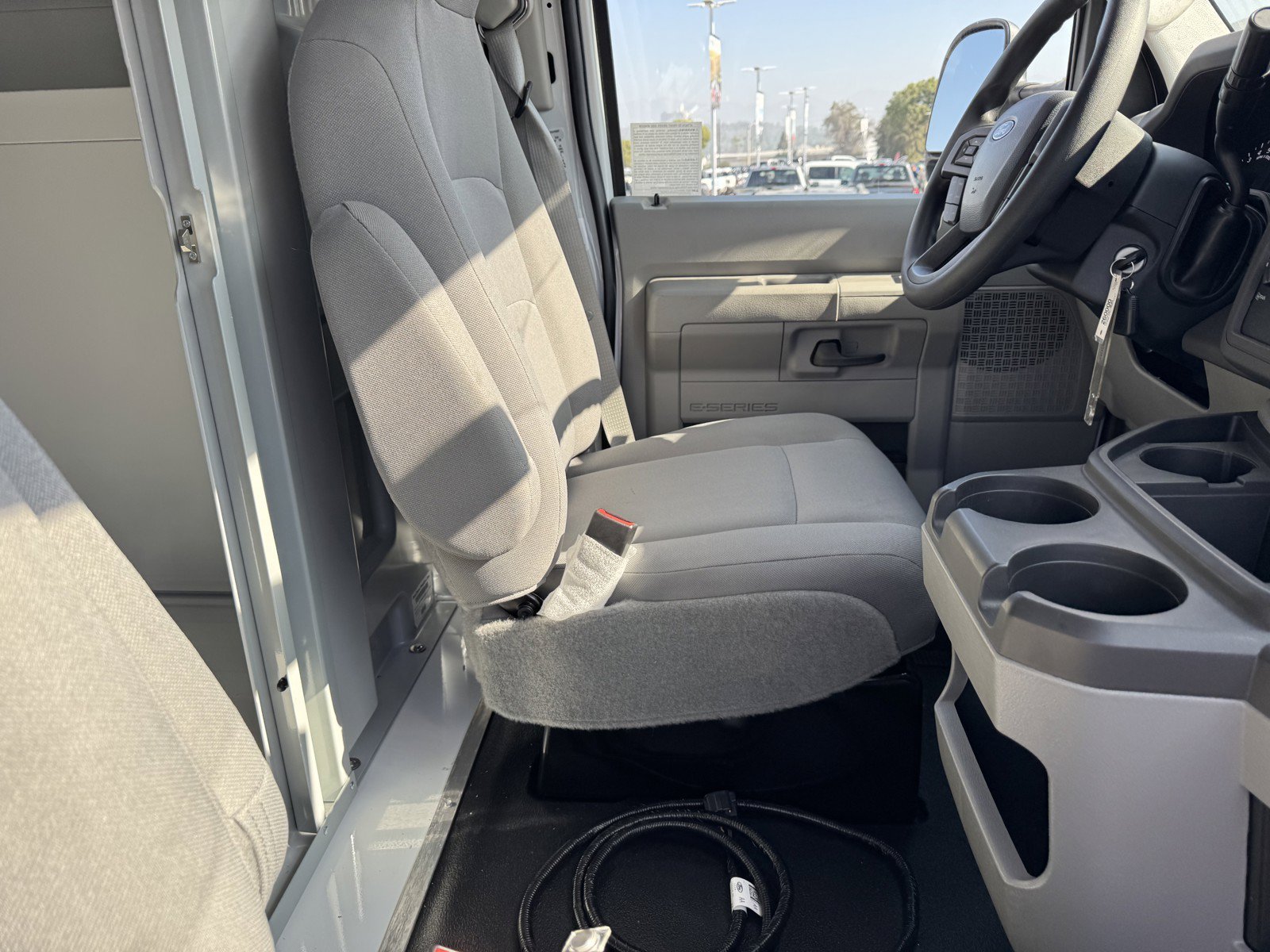

- 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
- 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement

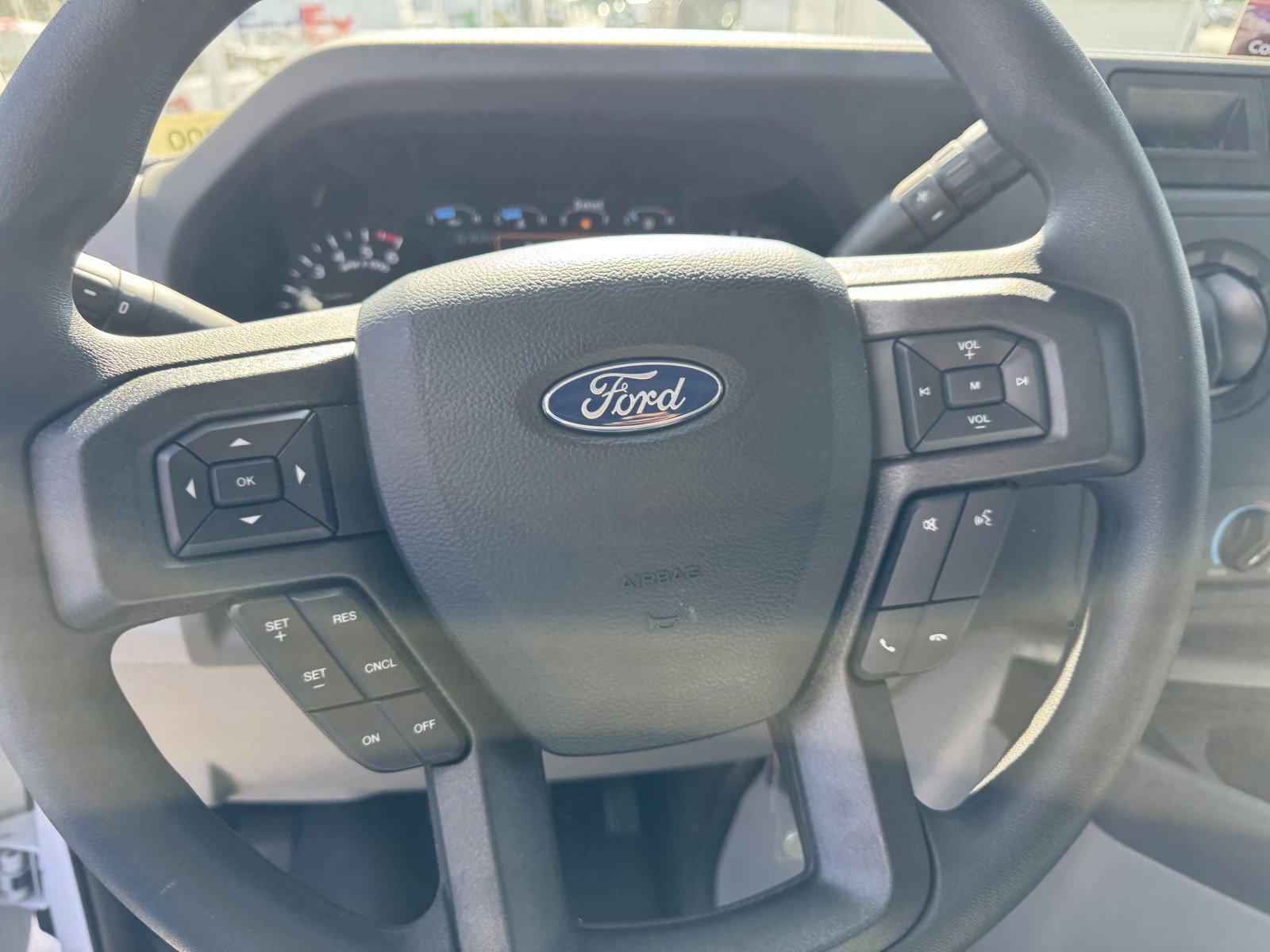

- Manual Tilt/Telescoping Steering Column
- Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp and Trip Odometer
- 4G LTE Embedded Modem Selective Service Internet Access
- Front Cupholder

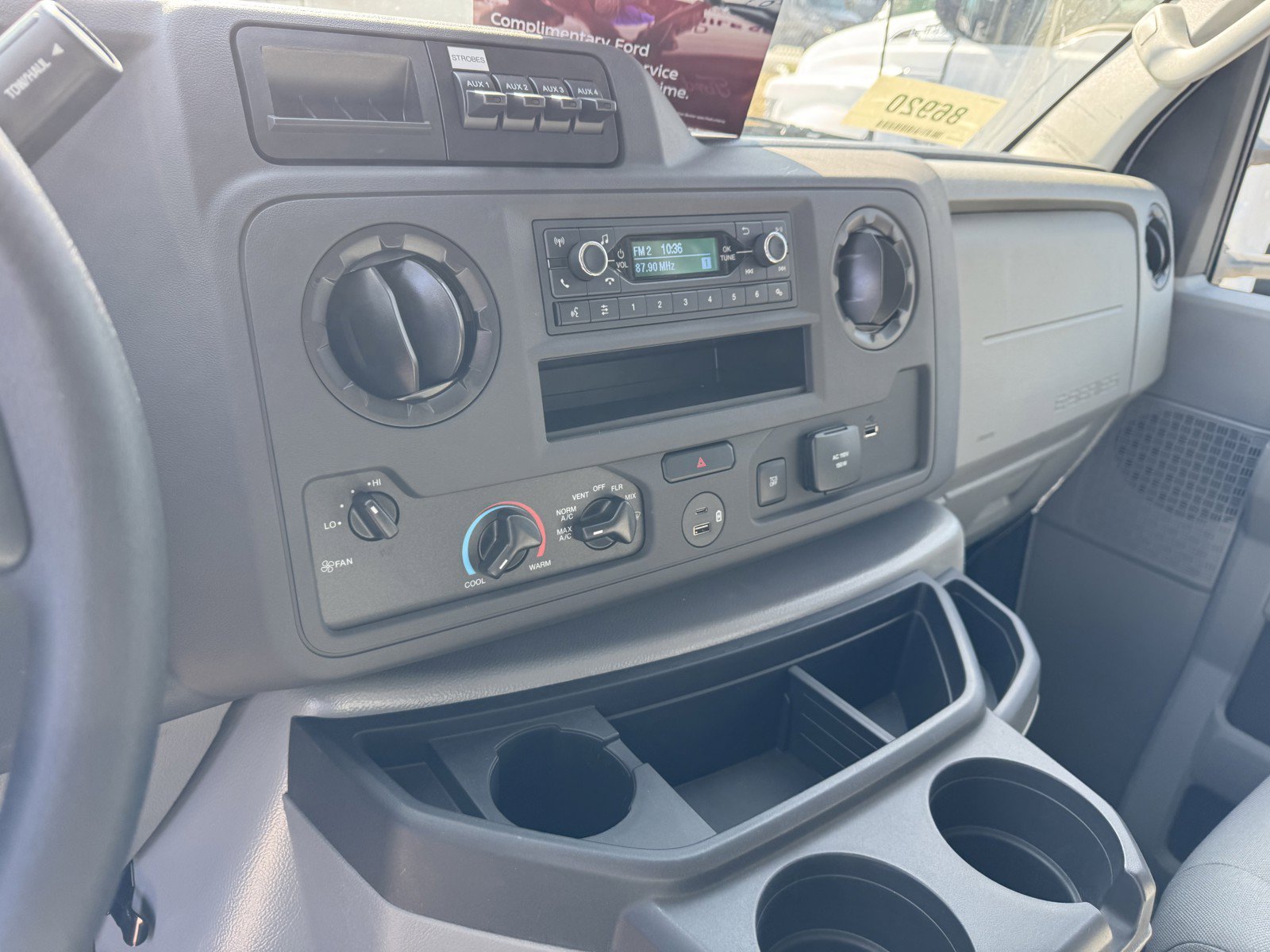

- Manual Air Conditioning

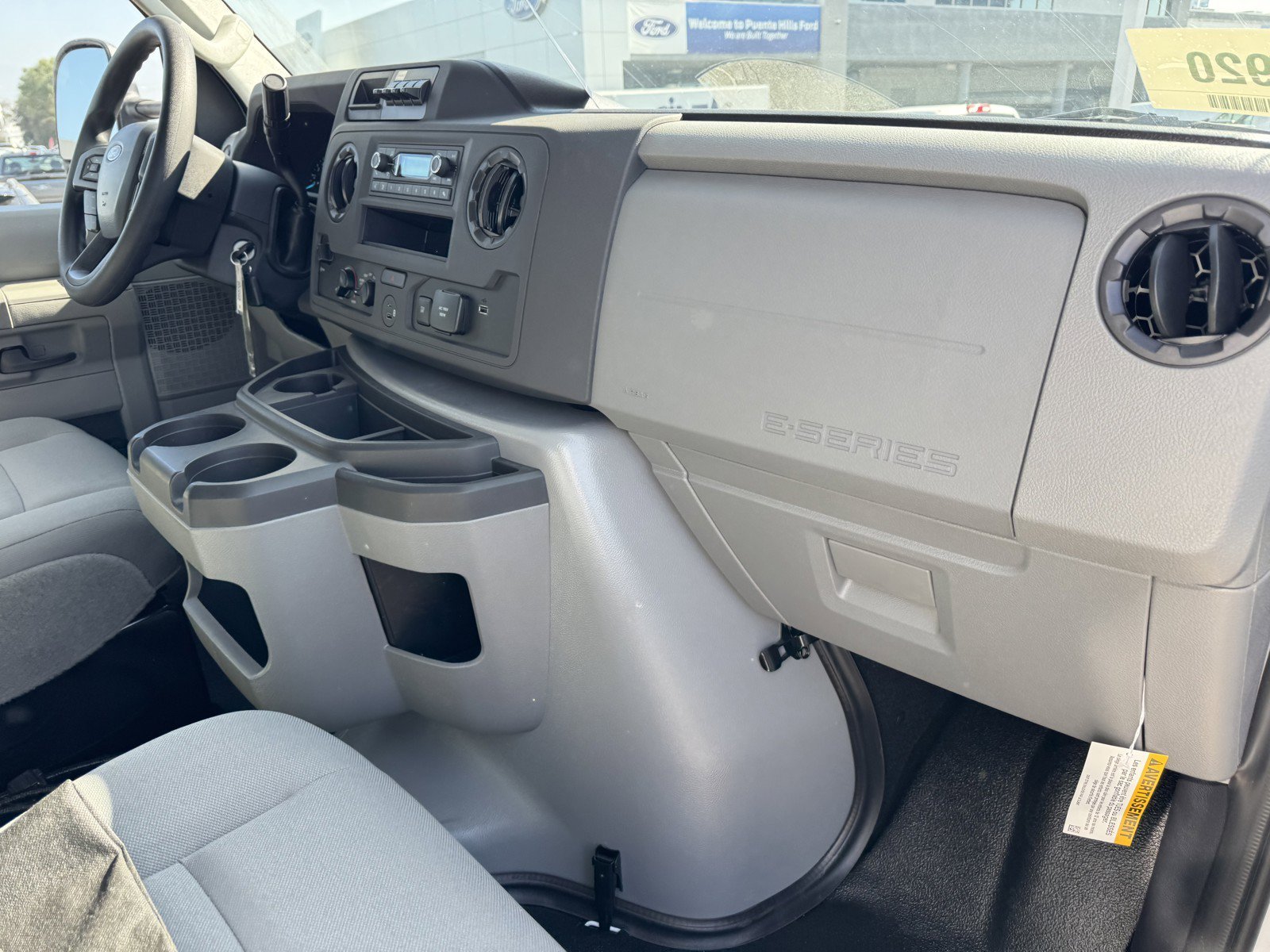

- Glove Box
- Front Vinyl Headliner
- Urethane Gear Shifter Material
- Partial Floor Console w/Storage and 2 12V DC Power Outlets
- Front Black Vinyl Floor Covering
- Fleet Telematics Modem Tracker System
- Driver And Passenger Door Bins and 1st Row Underseat Storage
- Manual 1st Row Windows
- Driver Information Center
- Analog Appearance
- Fixed Front Head Restraints
- Driver And Front Passenger Armrests
- 2 12V DC Power Outlets
Entertainment
- 2 Speakers
- Fixed Antenna
Mechanical
- Engine: 7.3L V8 Port Fuel Injected Gasoline
- 4.10 Axle Ratio
- 50 State Emission System
- Transmission w/Driver Selectable Mode and Oil Cooler
- Rear-Wheel Drive
- 78-Amp/Hr 750CCA Maintenance-Free Battery
- HD 210 Amp Alternator
- HD Gas-Pressurized Shock Absorbers
- Hydraulic Power-Assist Steering
- Single Stainless Steel Exhaust
- Front Suspension w/Coil Springs
- Solid Axle Rear Suspension w/Leaf Springs
- 4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs and Hill Hold Control
Safety
- Side Impact Beams
- Automatic Emergency Braking (AEB) Oncoming
- Collision Mitigation-Front
- Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners
Tech Specs
- Vehicle Name: Ford E-Series Cutaway
- Body Style: Chassis
- Body Code: H
- Drivetrain: Rear Wheel Drive
- Passenger Capacity: 2
- Base Curb Weight: 4907
- Gross Axle Wt Rating - Front: 4200
- Gross Axle Wt Rating - Rear: 6084
- Curb Weight - Front: 2940
- Curb Weight - Rear: 1967
- Gross Vehicle Weight Rating Cap: 10050
- Gross Combined Wt Rating: 18500
- Dead Weight Hitch - Max Trailer Wt.: 5000
- Dead Weight Hitch - Max Tongue Wt.: 500
- Wt Distributing Hitch - Max Trailer Wt.: 8450
- Wt Distributing Hitch - Max Tongue Wt.: 845
- Maximum Trailering Capacity: 8450
- Engine Order Code: 99N
- Engine Type: Regular Gasoline V-8
- Displacement: 7.3 L/445
- Fuel System: Sequential MPI
- SAE Net Horsepower @ RPM: 325 @ 3750
- SAE Net Torque @ RPM: 450 @ 3750
- Trans Order Code: 44P
- Trans Type: 6
- Trans Description Cont.: Automatic w/OD
- Trans Description Cont. Again:
- First Gear Ratio (:1): 3.97
- Second Gear Ratio (:1): 2.32
- Third Gear Ratio (:1): 1.52
- Fourth Gear Ratio (:1): 1.15
- Fifth Gear Ratio (:1): 0.86
- Sixth Gear Ratio (:1): 0.67
- Reverse Ratio (:1): 3.13
- Trans PTO Access: No
- Transfer Case Model: None
- Transfer Case Power Take Off: No
- Cold Cranking Amps @ 0° F (Primary): 750
- Cold Cranking Amps @ 0° F (2nd): 750
- Maximum Alternator Capacity (amps): 210
- Engine Oil Cooler: No
- Suspension Type - Front: Other
- Suspension Type - Rear: Leaf
- Spring Capacity - Front: 4200
- Spring Capacity - Rear: 6084
- Axle Type - Front: Independent
- Axle Type - Rear: Rigid Axle
- Axle Capacity - Front: 5000
- Axle Capacity - Rear: 7800
- Axle Ratio (:1) - Front: 4.10
- Axle Ratio (:1) - Rear: 4.10
- Front Tire Order Code: T38
- Rear Tire Order Code: T38
- Spare Tire Order Code:
- Front Tire Size: LT245/75SR16
- Rear Tire Size: LT245/75SR16
- Spare Tire Size:
- Front Tire Capacity: 4600
- Rear Tire Capacity: 6084
- Revolutions/Mile @ 45 mph - Front: 677
- Revolutions/Mile @ 45 mph - Rear: 677
- Front Wheel Size: 16 X 7
- Rear Wheel Size: 16 X 7
- Spare Wheel Size:
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Spare Wheel Material:
- Steering Type: Re-Circulating Ball
- Turning Diameter - Curb to Curb: 48.6
- Brake Type: 4-Wheel Disc
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line): 4-Wheel
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness: 13.6
- Rear Brake Rotor Diam x Thickness: 13.6
- Drum - Rear (Yes or ):
- Rear Drum Diam x Width:
- Fuel Tank Capacity, Approx: 40
- Front Head Room: 42
- Front Leg Room: 42.1
- Front Shoulder Room: 68.1
- Front Hip Room: 65.6
- Wheelbase: 138
- Length, Overall: 241.1
- Width, Max w/o mirrors: 79.4
- Height, Overall: 80.4
- Overhang, Rear w/o bumper: 68.5
- Cab to Axle: 80
- Cab to End of Frame: 148.5
- Ground to Top of Load Floor: 25.9
- Model Group: Econoline
- Vehicle Segment: Chassis
- Vehicle Type: Chassis
- Body Cab Style: Chassis
- Engine Displacement Units: 7.3
- Engine Camshaft: OHV
- Engine Block Type: iron
- Engine Cylinder Count: 8
- Engine Valve Count: 2
- Country of Origin: United States Ford Incomplete Vehicle
Details
- High Series Exterior Upgrade Package
- Order Code 780A
- Power Equipment Group
- Remote Keyless Entry
- Cruise Control
- Chrome Grille
- Frame Pucks (Isolators)
- Front Chrome Bumper
- License Plate Bracket
- 110V Power Inverter
- Front Black Vinyl Floor Covering
- Rear View Camera Kit
- User-Defined Switches
- Dual High Back Buckets
- Vinyl Bucket Seats
- 4.10 Axle Ratio
- Driver Air Bag
- Passenger Air Bag
- A/C
- ABS
- 4-Wheel Disc Brakes
- Rear Wheel Drive
- 8 Cylinder Engine
- Gasoline Fuel
- Daytime Running Lights
- Bucket Seats
- Power Steering
- Adjustable Steering Wheel
- Tires - Front All-Season
- Tires - Rear All-Season
- Traction Control
- 6-Speed A/T
- Intermittent Wipers
- A/T
- Variable Speed Intermittent Wipers
- Automatic Headlights
- Steel Wheels
- Auxiliary Audio Input
- Front Collision Mitigation
